Damping in closed position - Double-sided stroke

DSD

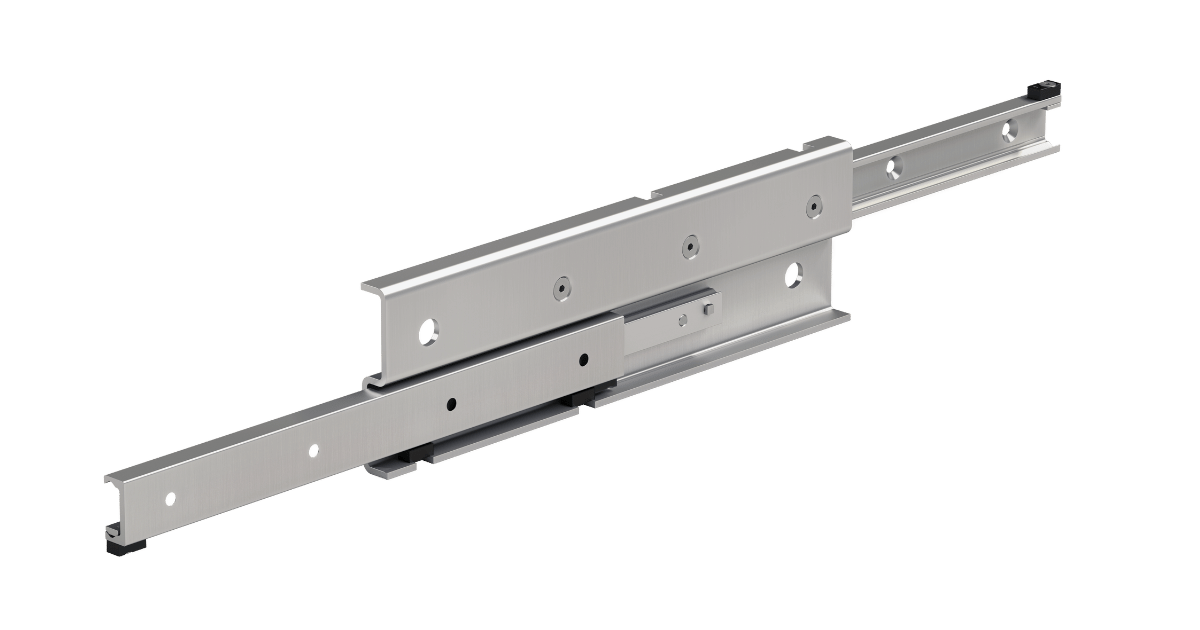

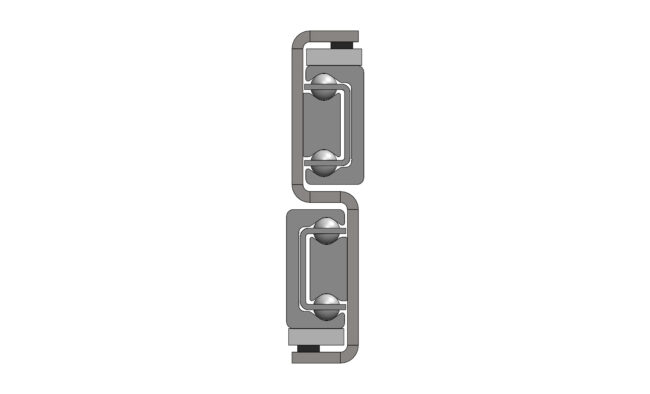

Full-extension ball slide for demanding industrial applications. Very compact in thickness and high flexural rigidity. Optional surface treatments available and special machining on request.
Available Sizes
28 35 43 63
Lifetime and deflection of the slide available. Maximum payload over 25 000 N/pair. Stroke up to 1758 mm.

During the design phase, ensure that the fixing holes on both sides of the slide are accessible for easy installation

End stops outside the slide recommended

Operating temperature range between -20 and +80°C. For the DS…S version: -20 and +50°C
