Rolled Profile

HVC

- 04

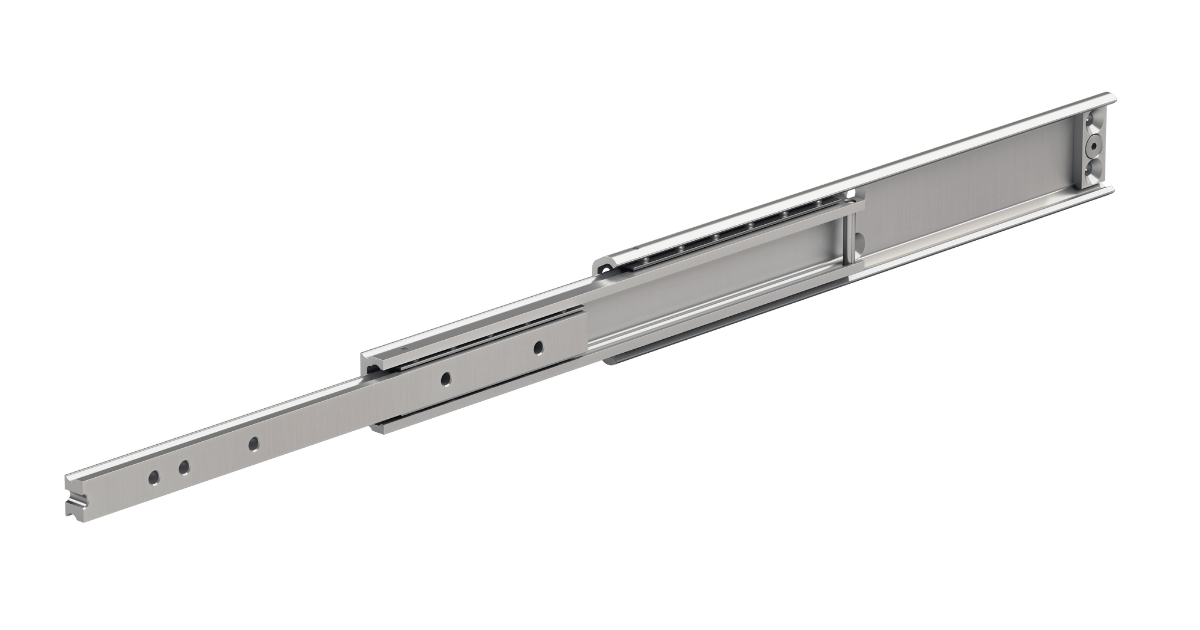

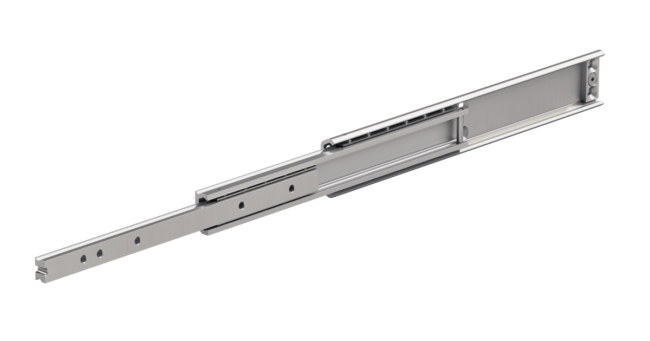

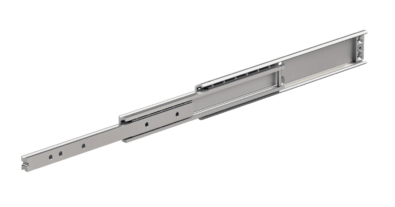

Full-extension ball slide. Double-sided stroke and locking in closed position as an option . Special machining on request. Optional surface treatments available.

Available Sizes

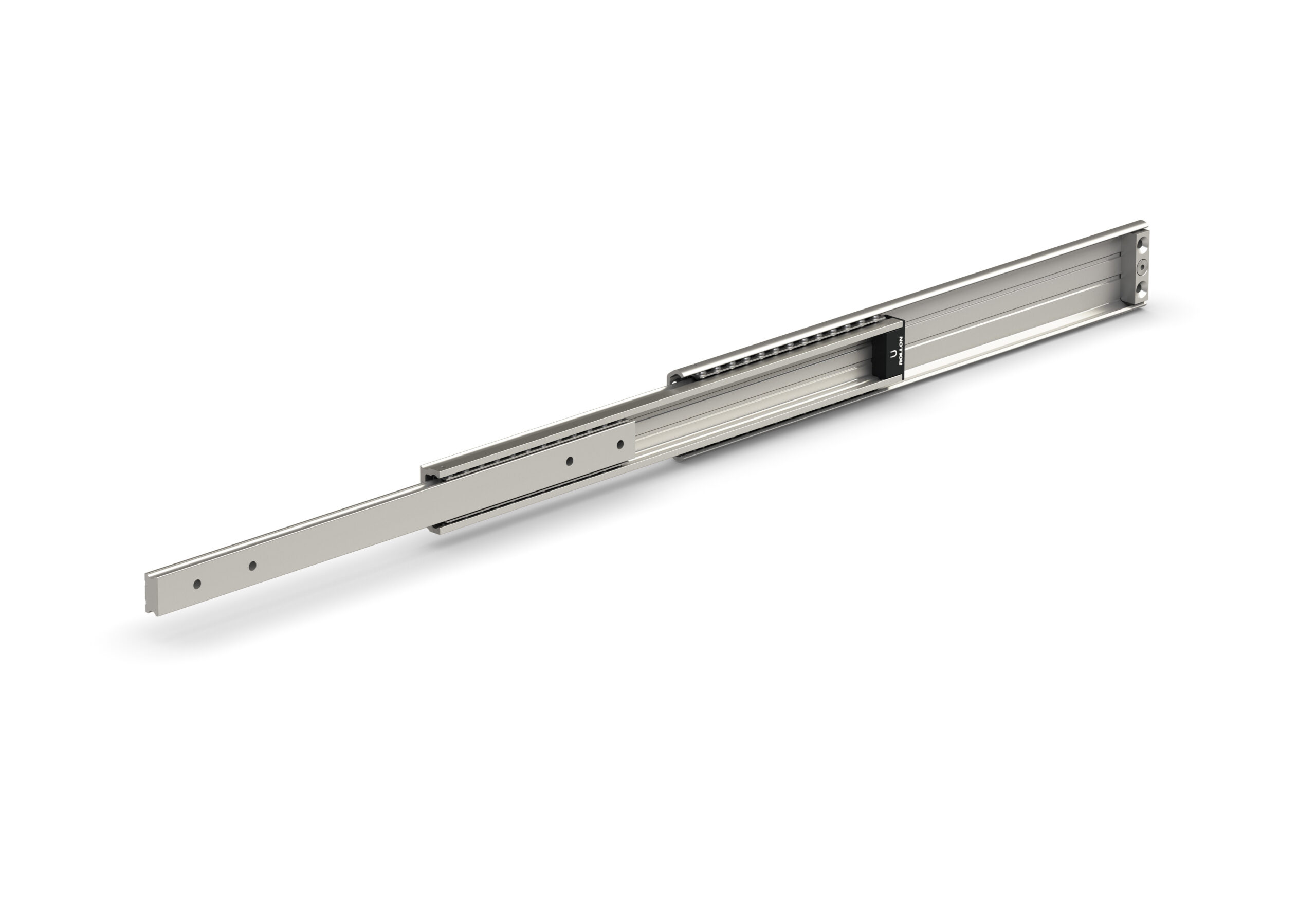

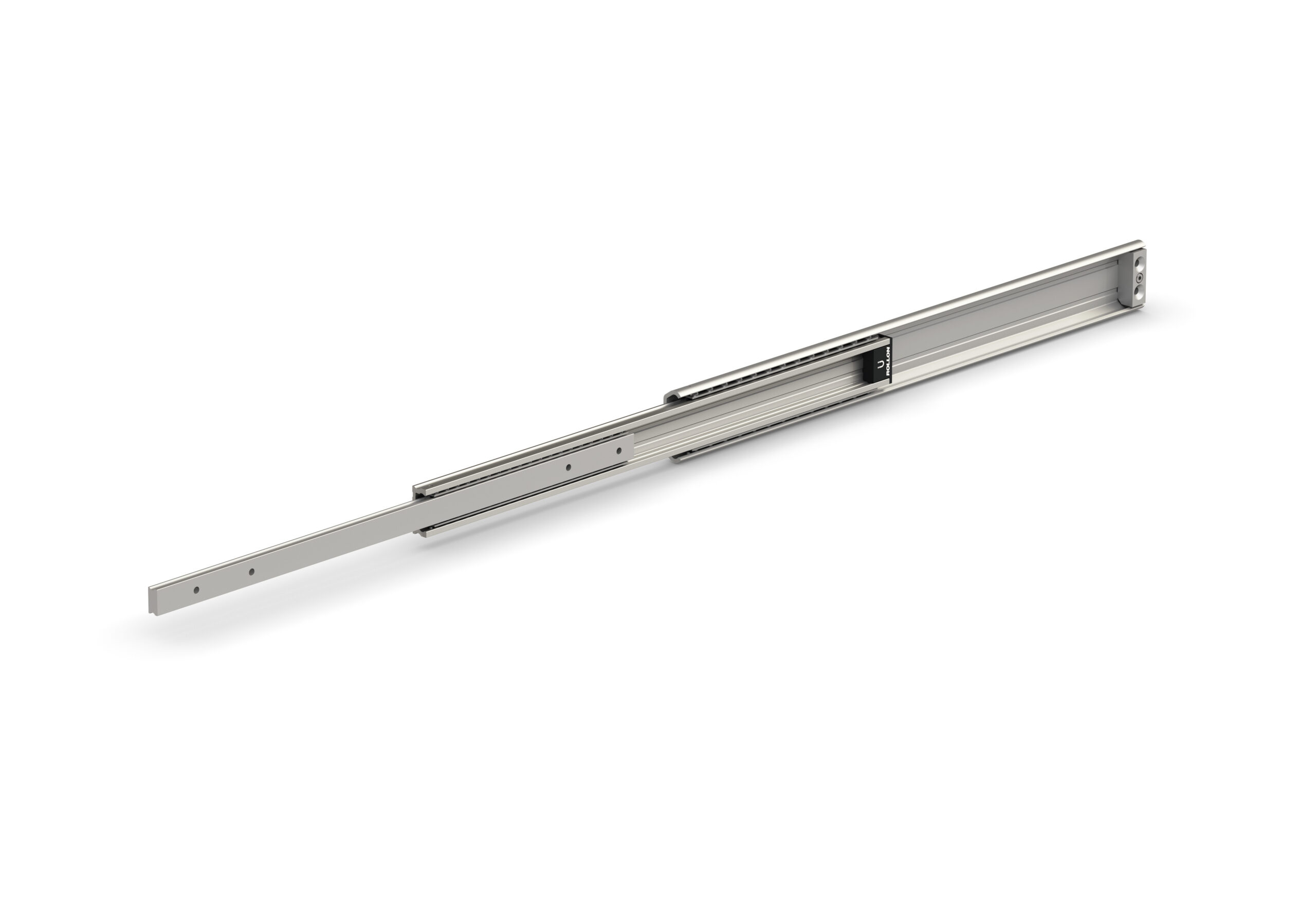

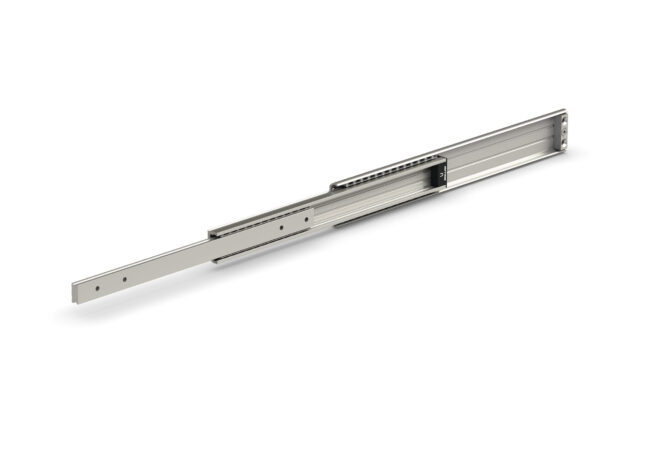

45 50 54MG 58 68MG 75

Data sheet

Stroke up to 1 500 mm. Maximum payload over 900 N/pair.
