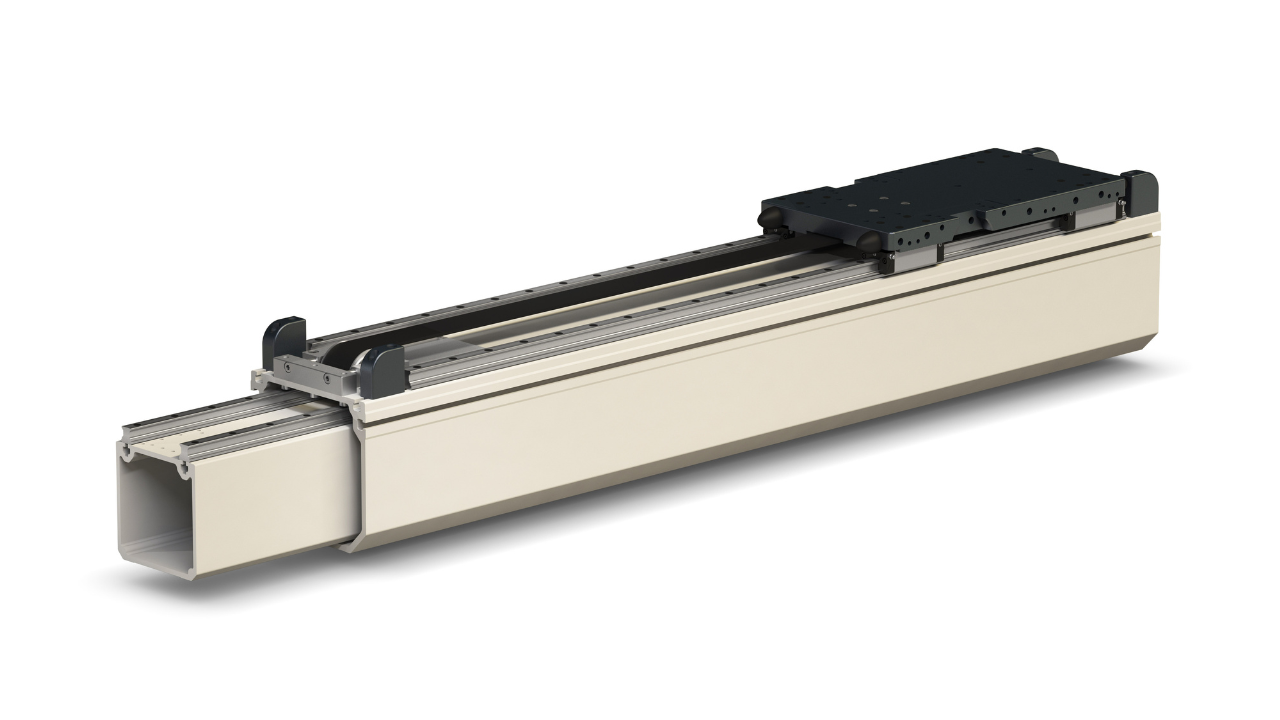

TEC

Rack and pinion driven telescopic axes with double beam Double synchronous stroke using a single motor Overall size reduced by 35% compared to standard axes Speed up to 3 m/s Reduced maintenance Base Mass (zero stroke): 46 kg Linear Mass: 2.33 kg/100 mm Mass Second Extension (zero stroke): 8.9 kg Mass Second Extension (x 100 mm stroke): 0.78 kg/100mm Mass First Extension (zero stroke): 15.7 kg Mass First Extension (x 100 mm stroke): 1.55 kg/100mm Maximum Velocity: 4 m/s Unloaded Repeatability: ±0.15 mm Drive Type: Rack features Gear Module First Extension: 3 Pinion Primitive Circumference: 219.990 mm/rotation
