Cold Drawn Profile

HTT

- 02

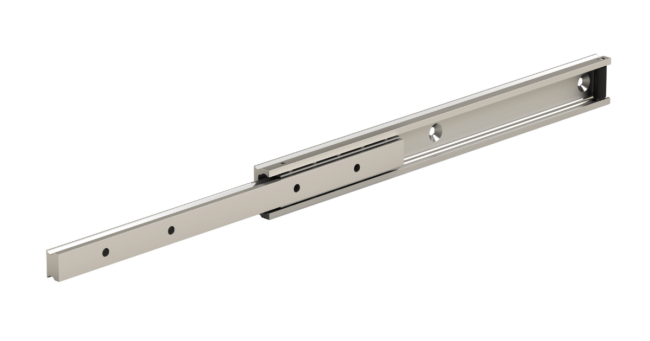

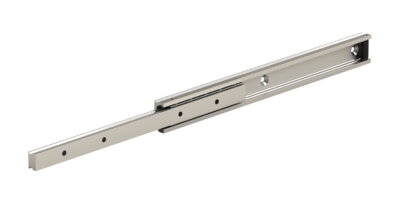

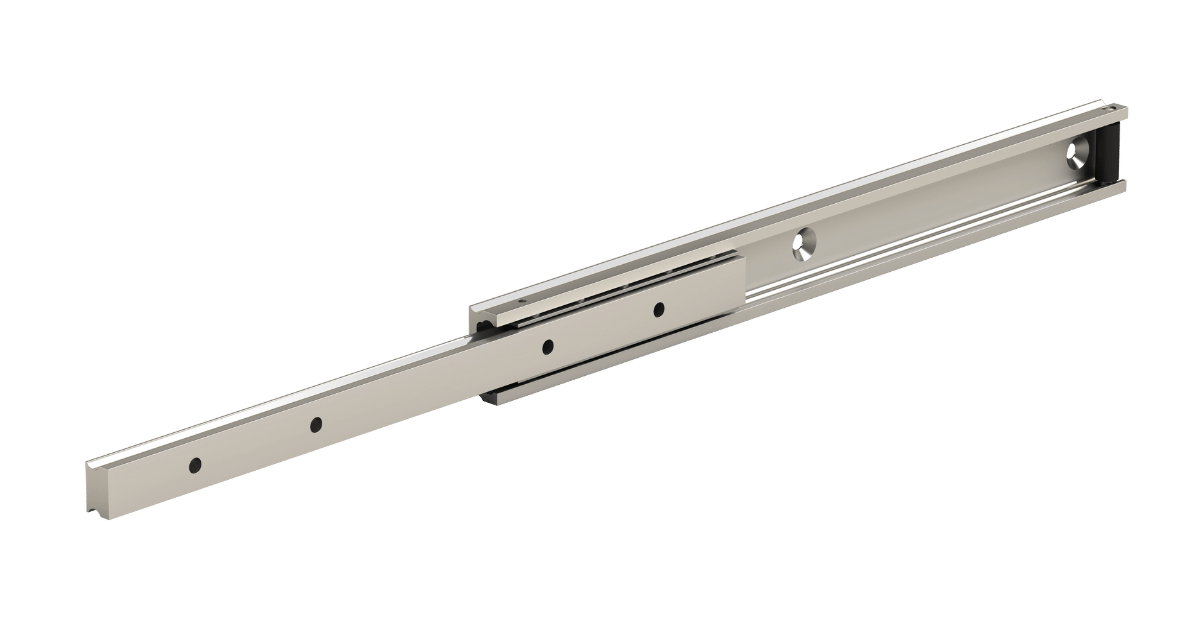

Very rigid, cost effective, ball slide with partial extension. Numerous optional accessories.

Available Sizes

30 40 50

Catalogs

Stroke up to 720 mm. Maximum payload over 2 000 N/pair.

Very good corrosion resistance, which can be improved with zinc-nickel coating and stainless steel balls (optional)

Wide operating temperature range from -20 to +170°C excluding options and accessories

Mathieu MACCHI

Engineering

You need some help with a 3D file?

Reference

HTT

Cold Drawn Profile
