Terminais de rótula autolubrificantes em aço inoxidável, rosca macho, série K, DIN ISO 12240-4, isentos de manutenção
Tamanhos disponíveis
5 → 20
O essencial
Self-lubricating rod ends stainless steel, male thread, series K, DIN ISO 12240-4, maintenance free.
CHIAVETTE UNIFICATE stainless steel rod ends with stainless steel/bronze coupling, series K, male thread, self-lubricating, according to DIN ISO 12240-4
Housing: stainless steel X5CrNi1810 (1.4301 – AISI 304)
Outer ring: sintered bronze impregnated with high efficiency lubricating fluid
Inner ring: tempered, ground and polished steel for bearings X20Cr13 (1.4021 – AISI 420)
Maintenance: maintenance-free
Temperature range: -30° C to +120° C

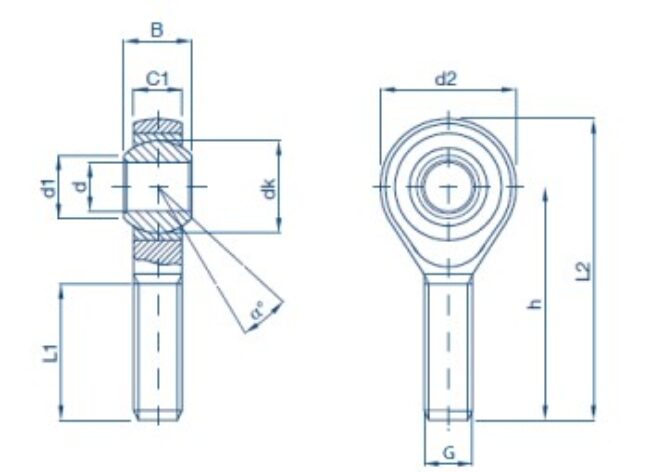

| Type | d (mm) | d2 (mm) | dk (mm) |
|---|---|---|---|
| CMX5 M5 | 5 | 18 | 11.11 |
| CMX6 M6 | 6 | 20 | 12.7 |
| CMX8 M8 | 8 | 24 | 15.87 |
| CMX10 M10 | 10 | 28 | 19.05 |
| CMX12 M12 | 12 | 32 | 22.22 |
| CMX14 M14 | 14 | 36 | 25.4 |
| CMX16 M16 | 16 | 42 | 28.57 |
| CMX20 M20 | 20 | 50 | 34.92 |
| CMX20 M20x1,5 | 20 | 50 | 34.92 |
| CMXL5 M5 | 5 | 18 | 11.11 |
| CMXL6 M6 | 6 | 20 | 12.7 |
| CMXL8 M8 | 8 | 24 | 15.87 |
| CMXL10 M10 | 10 | 28 | 19.05 |
| CMXL12 M12 | 12 | 32 | 22.22 |
| CMXL14 M14 | 14 | 36 | 25.4 |
| CMXL16 M16 | 16 | 42 | 28.57 |
| CMXL20 M20 | 20 | 50 | 34.92 |
| CMXL20 M20x1,5 | 20 | 50 | 34.92 |
| Type | d (mm) | d2 (mm) | dk (mm) |
