Clean Room

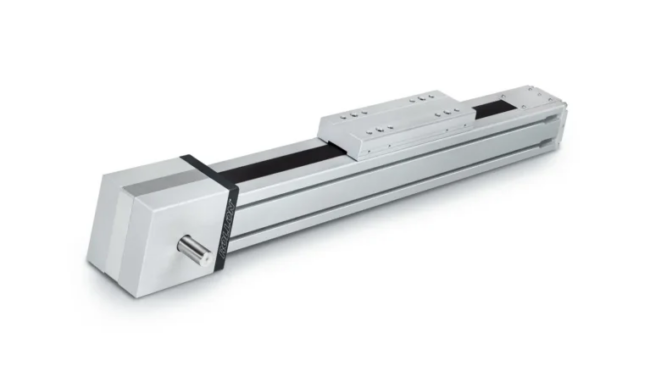

Clean Room System One
Compact linear unit designed for clean room applications.
Available Sizes
50
65
80
110
- Movement provided by a linear guide with recirculating caged balls and a toothed belt located inside the profile
- Linear unit made to order with customized stroke
- Technical file with calculation notice supplied on request
- Particularly suitable for configurations in which two units are mounted in parallel
- In single-axis configuration, to be reserved for moderate load cases with little overhang
- Sealing ensured by a polyurethane protective strip guided by miniature bearings
- Useful accessories: gearboxes and mounting kits, sensor holders …
- Specific fittings mounted at both ends of the unit for connection to a suction system for a vacuum pumping operation
ONE 50 |
ONE 65 |
ONE 80 |
ONE 110 |
|
| Profile width/height (mm) | 50 x 50 | 65 x 65 | 80 x 80 | 110 x 110 |
| Rail size (mm) | 12 | 15 | 20 | 25 |
| Maxi. working stroke (mm) | 3700 | 6000 | 6000 | 6000 |
| Maxi. Repetability (mm) | +/- 0,05 | +/- 0,05 | +/- 0,05 | +/- 0,05 |
