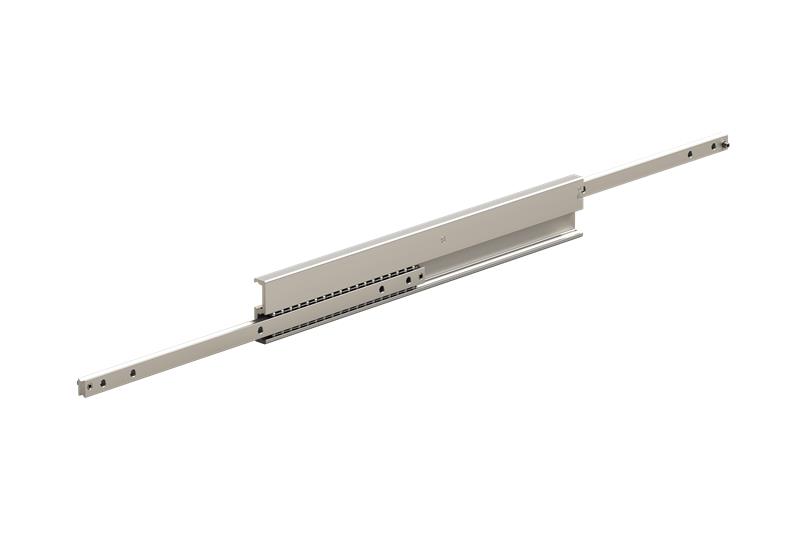

LTF

Full extension miniature ball slide.

Available Sizes

44 60

Catalogs

The Essential

Only one size: 44 of 43×12 mm section with optimized mass = 2,7 Kg/m
Extension stroke up to 1 m with corresponding radial load capacity per pair = 130 Kg
Stroke can be adapted on request according to requirements. Please note that this will change the load capacity values
Suitable for moderate manual speeds, without shocks

Main Recommendations

During the design phase, ensure that the mounting holes on both sides of the slide are accessible for easy assembly

Not recommended for flat mounting configurations

Environment

Wide operating temperature range from -20 to +170°C
