Stainless Steel - Cold Drawn Profile

HTT-X

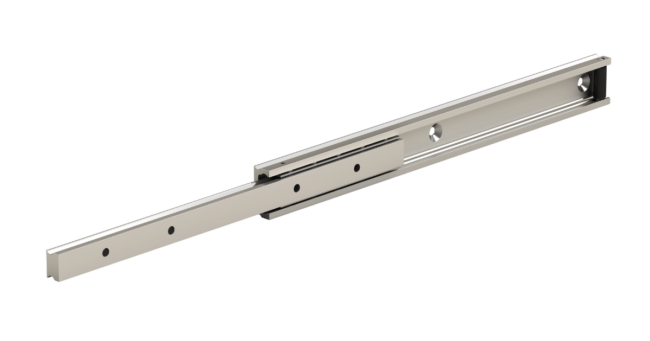

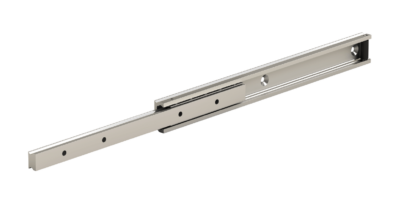

Rigid partial extension (50%) ball slide. Stainless Steel AISI 304 profile. Special machining on request.
Available Sizes
30 40 50
Stroke up to 760 mm. Maximum payload over 1 200 N/pair.
  • 3 sizes available: 30 (30×15 mm section), 40 (40×18.5), 50 (50×19.5)
  • Safe handling thanks to numerous accessories: locking, stops and shock absorbers, holding in position, drive discs (not cumulative for some)
  • Ease of assembly: Design adapted for easy access for assembly on one side of the slide.  Optimized number of screws for the slide mounting, especially when the length is important
  • Stroke can be adapted on request according to requirements. Please note that the load carrying capacity values are modified as a result
  • Suitable for moderate manual operation, without shocks

Excellent resistance to salt spray

Wide operating temperature range from -20 to +170°C excluding options and accessories

Apply a moderating coefficient of 0.6 on the catalogue load capacities of the steel version
