DGE DW-2RS

XXL-Large-radial-spherical-plain bearing, sliding combination steel / PTFE, with -2RS lip seals on both sides, series C, according to DIN ISO 12240-1
Available Sizes
320 → 600

The Essential

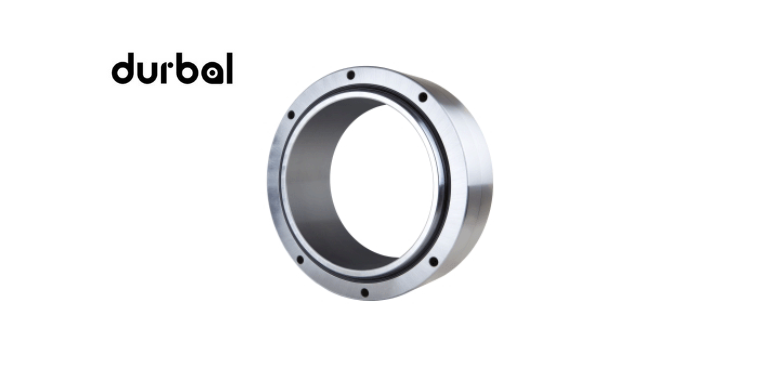

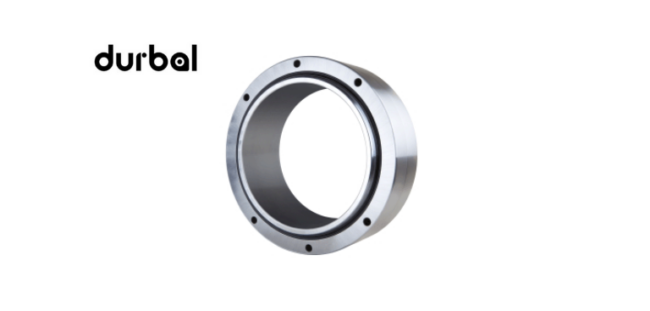

DURBAL XXL-Large-radial-spherical-plain bearing, sliding combination steel / PTFE, with -2RS lip seals on both sides, series C, according to DIN ISO 12240-1

  • Outer ring: heat-treated steel, hardened, radially split, it is held together by means of screws and dowel pins, bonded with PTFE – sheet, with -2RS lip seals on both sides
  • Joint ball: ball bearing steel, hardened, ground, polished and hard chromium plated
  • Maintenance: maintenance free
  • Temperature range: -40° C to +120° C

Special characteristics:

  • For use at high loads with a constant direction if smooth operation is required; limited suitability for alternating- and shock loads.
  • -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.

For shaft diameters from 320 mm to 600 mm. All items on request.

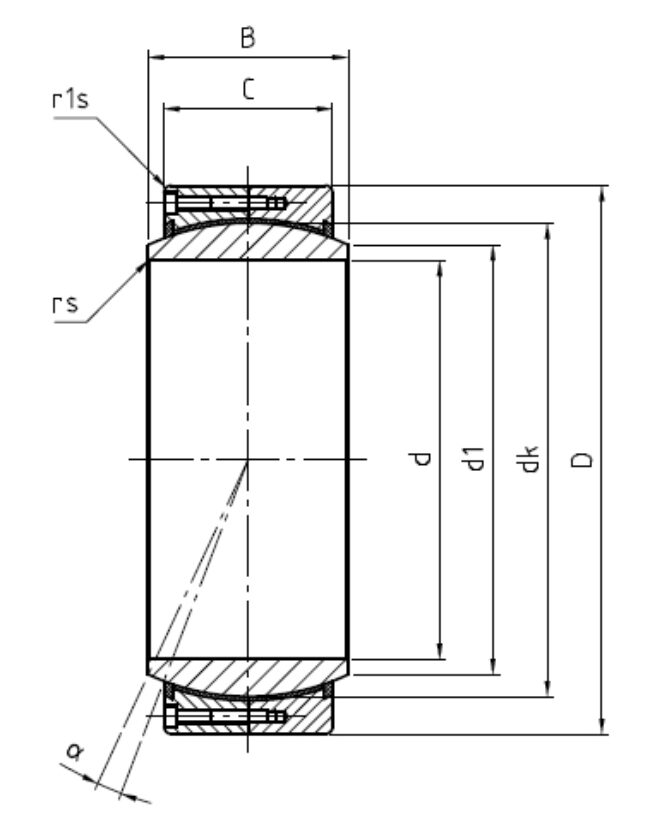

Type d (mm) D (mm) B (mm)
DGE 320 DW-2RS 320 440 160
DGE 340 DW-2RS 340 460 160
DGE 360 DW-2RS 360 480 160
DGE 380 DW-2RS 380 520 190
DGE 400 DW-2RS 400 540 190
DGE 420 DW-2RS 420 560 190
DGE 440 DW-2RS 440 600 218
DGE 460 DW-2RS 460 620 218
DGE 480 DW-2RS 480 650 230
DGE 500 DW-2RS 500 670 230
DGE 530 DW-2RS 530 710 243
DGE 560 DW-2RS 560 750 258
DGE 600 DW-2RS 600 800 272
