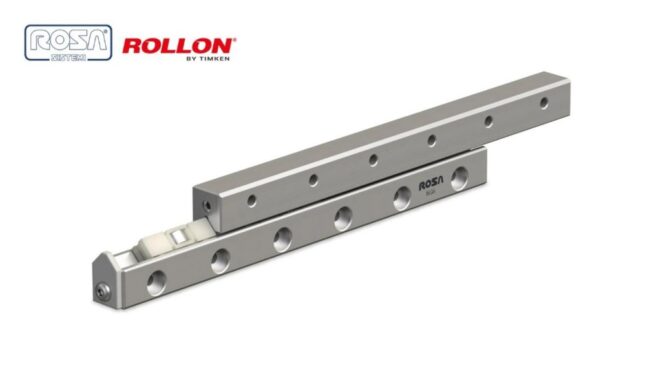

Compact High-Capacity Guides

NG guides

- 02

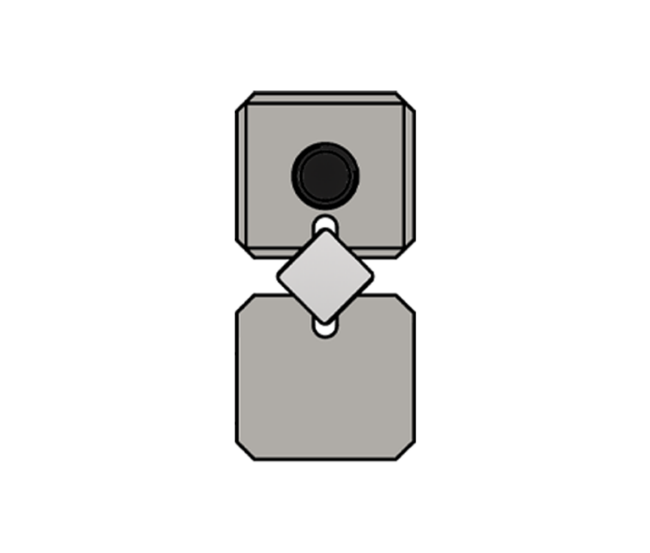

Feature cross rollers and two different sections. Ensure high load capacity and stiffness.

Available Sizes

NG4 NG6

Induction hardened raceways to ensure high performance even under heavy duty cycles.
Low noise thanks to the antifriction coating available on the raceways.
The rolling elements can be either, needle rollers, cross rollers or balls, according to load capacity and misalignment needs.
Designed to support heavy loads ensuring high stiffness of the system.

You can temporarily find the 3D file here.

The 3D file does not appear to be available on the website

Please do not hesitate to contact us so that we can send it to you

You need some help with a 3D file?

Reference

NG guides

Compact High-Capacity Guides
