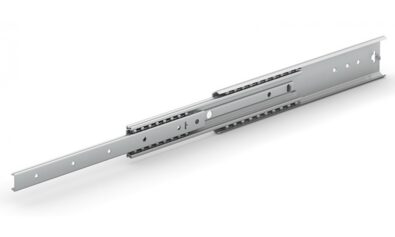

Rolled Profile

LRS

- 04

Low cost total extension ball slide for a basic use only.

Available Sizes

56 71 76 71OE

Stroke up to 1 504 mm. Maximum payload over 2 300 N/pair.

Light and quiet running
Long service life with low maintenance
High reliability
Structural elasticity capable of absorbing minor impacts and absence of permanent deformation
Not sensitive to side impacts
Different options are available depending on the rail size (e.g. locking systems in open and/or closed position) and further customizations (eg. lengths, strokes) are possible.
LRS 56/71/76 : Full extension telescopic rail It features end stoppers with hold closed which reduces noise function and prevents the guide from opening by itself in closed position.
