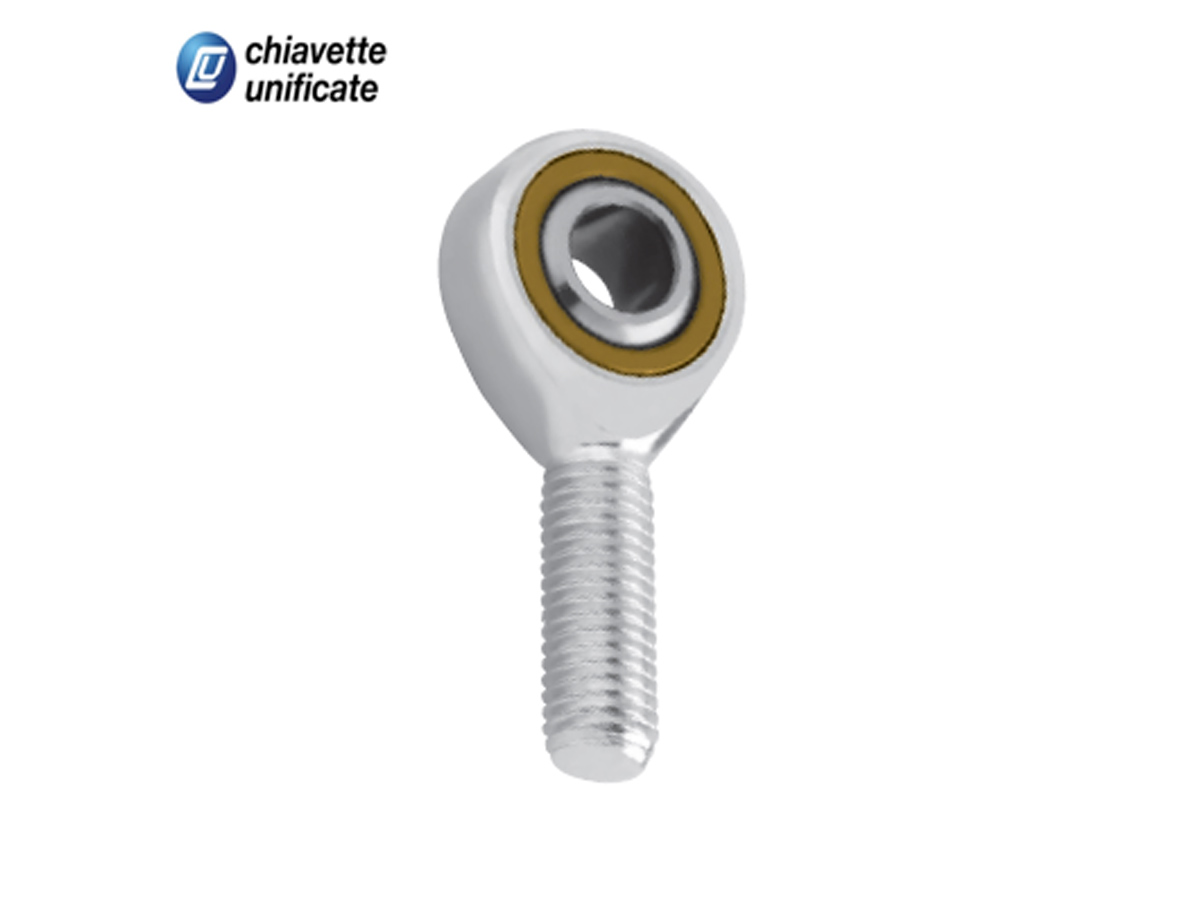

CM TOP

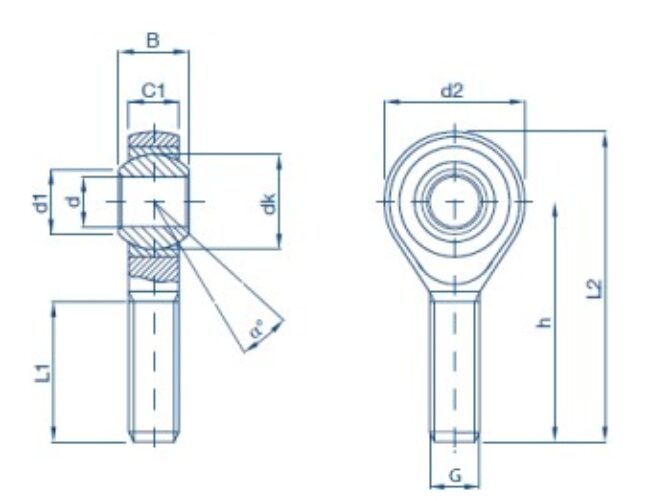

CM TOP_rev
Self-lubricating rod ends, male thread, series K, DIN ISO 12240-4, maintenance free
Available Sizes
5 → 35

The Essential

Self-lubricating rod ends, male thread, series K, DIN ISO 12240-4, maintenance free.

CHIAVETTE UNIFICATE rod ends with steel/bronze coupling, series K, male thread, self-lubricating, according to DIN ISO 12240-4
Housing: up to size 12 automatic steel 11SMnPb30 (1.0718), from size 14 carbon steel C40 (1.1186), galvanized surface free of Cr VI
Outer ring: sintered bronze impregnated with high efficiency lubricating fluid
Inner ring: tempered, ground and polished steel for bearings 100Cr6 (1.3505)
Maintenance: maintenance-free Temperature range: -30° C to +120° C

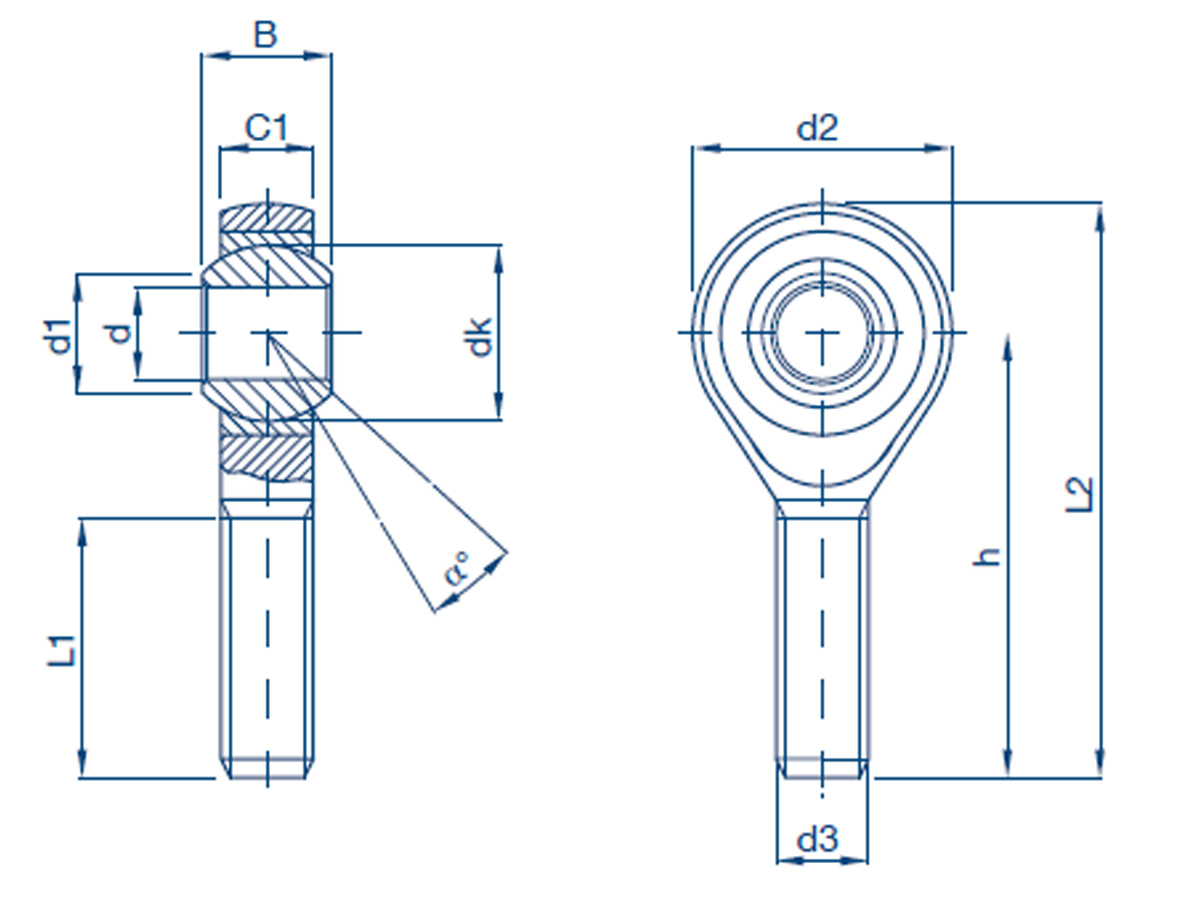

Type d (mm) B (mm) h (mm)
CM5 M5 5 9 36
CM6 M6 6 9 36
CM8 M8 8 12 42
CM10 M10 10 14 48
CM10 M10x1,25 10 14 48
CM12 M12 12 16 54
CM12 M12x1,25 12 16 54
CM14 M14 14 19 60
CM16 M16 16 21 66
CM16 M16x1,5 16 21 66
CM18 M18x1,5 18 23 72
CM20 M20 20 25 78
CM20 M20x1,5 20 25 78
CM22 M22x1,5 22 28 84
CM25 M24x2 25 31 94
CM30 M30x2 30 37 110
CM35 M36x2 35 43 140
CML5 M5 5 8 33
CML6 M6 6 9 36
CML8 M8 8 12 42
CML10 M10 10 14 48
CML10 M10x1,25 10 14 48
CML12 M12 12 16 54
CML12 M12x1,25 12 16 54
CML14 M14 14 19 60
CML16 M16 16 21 66
CML16 M16x1,5 16 21 66
CML18 M18x1,5 18 23 72
CML20 M20 20 25 78
CML20 M20x1,5 20 25 78
CML22 M22x1,5 22 28 84
CML25 M24x2 25 31 94
CML30 M30x2 30 37 110
CML35 M36x2 35 43 140
Type d (mm) B (mm) h (mm)
