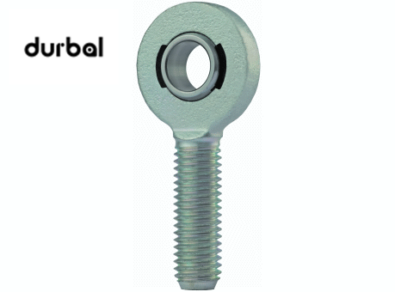

Rod ends in stainless steel with DURBAL-Glide (PTFE), male thread, series E/EH, DIN ISO 12240-4, maintenance free
Available Sizes
6 → 60
Catalogs

The Essential

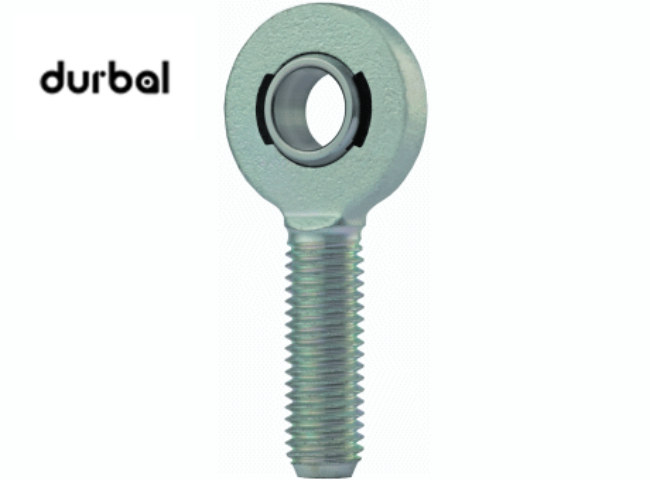

DURBAL heavy-duty rod ends in stainless steel with integral spherical-plain bearing, series E/EH, male thread, according to DIN ISO 12240-4
Right hand thread: EM_-60-501 and left hand thread: EM_-60-502

  • Housing: AISI 304 stainless steel, forged, surface electropolished
  • Race DURBAL-Glide: Polyamid-PTFE-fibreglass-Compound
  • Joint ball: AISI 440b stainless steel, hardened, ground, polished
  • Maintenance: maintenance-free
  • Tolerances: see on this page
  • Highlights: see on this page
  • Temperature range: -30° C to +60° C

Special characteristics:

  • DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign particles. This fact and the greater overlay thickness compared to other sliding materials assure a longer durability.
  • Rod end housings are made of forged or as a turning part in stainless steel, extremly high loads resistant and surface electropolished which ensures you a very high corrosion resistance.
  • No clearance: radial clearance 0 – 10 µm;
  • Suitable for use with impact loads;
  • For use with small swivelling movements and at low speeds.
  • Free from non-ferrous metals.

​​​Available as a complete linkages (system) solution or separately with hexagonal locking nuts. For shaft diameters from 6 mm to 60 mm.

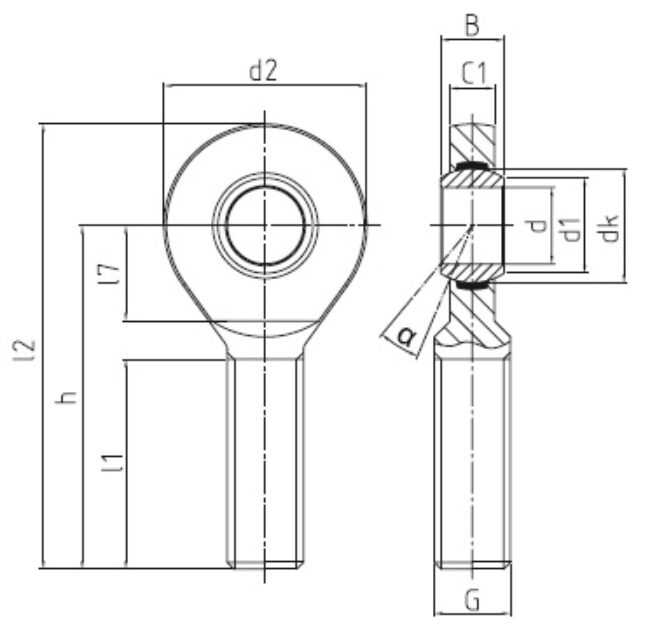

Type d (mm) G d2 (mm) l2 (mm)
EM 06 – 60 – 501 6 M 6 20 46
EM 06 – 60 – 502 6 M 6 20 46
EM 08 – 60 – 501 8 M 8 23 53.5
EM 08 – 60 – 502 8 M 8 23 53.5
EM 10 – 60 – 501 10 M 10 28 62
EM 10 – 60 – 502 10 M 10 28 62
EM 12 – 60 – 501 12 M 12 32 70
EM 12 – 60 – 502 12 M 12 32 70
EM 15 – 60 – 501 15 M 14 38 82
EM 15 – 60 – 502 15 M 14 38 82
EM 17 – 60 – 501 17 M 16 44 91
EM 17 – 60 – 502 17 M 16 44 91
EM 20 – 60 – 501 20 M 20 x 1,5 51 103.5
EM 20 – 60 – 502 20 M 20 x 1,5 51 103.5
EM 25 – 60 – 501 25 M 24 x 2 62 125
EM 25 – 60 – 502 25 M 24 x 2 62 125
EM 30 – 60 – 501 30 M 30 x 2 70 145
EM 30 – 60 – 502 30 M 30 x 2 70 145
EM 35 – 60 – 501 35 M 36 x 3 82 181
EM 35 – 60 – 502 35 M 36 x 3 82 181
EM 40 – 60 – 501 40 M 42 x 3 92 191
EM 40 – 60 – 502 40 M 42 x 3 92 191
EM 40 – 61 – 501 40 M 39 x 3 92 196
EM 40 – 61 – 502 40 M 39 x 3 92 196
EM 45 – 60 – 501 45 M 45 x 3 102 216
EM 45 – 60 – 502 45 M 45 x 3 102 216
EM 45 – 61 – 501 45 M 42 x 3 102 214
EM 45 – 61 – 502 45 M 42 x 3 102 214
EM 50 – 60 – 501 50 M 52 x 3 112 251
EM 50 – 60 – 502 50 M 52 x 3 112 251
EM 50 – 61 – 501 50 M 45 x 3 112 241
EM 50 – 61 – 502 50 M 45 x 3 112 241
EM 60 – 60 – 501 60 M 60 x 4 135 292.5
EM 60 – 60 – 502 60 M 60 x 4 135 292.5
EM 60 – 61 – 501 60 M 52 x 3 135 277.5
EM 60 – 61 – 502 60 M 52 x 3 135 277.5
