WLK
Heavy-duty spherical bearings with integral self-aligning ball bearing
Available Sizes
6 → 30
Catalogs

The Essential

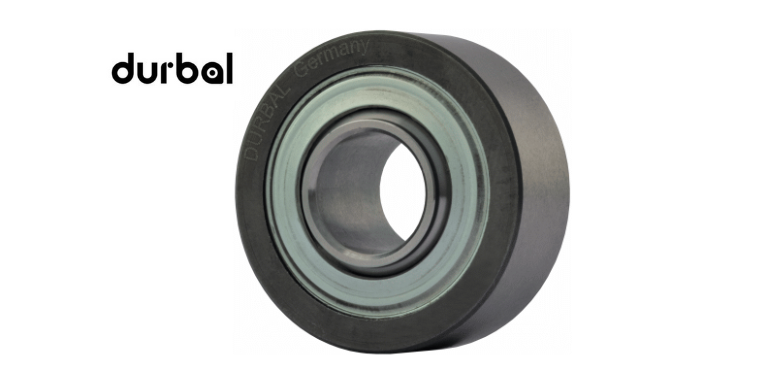

DURBAL heavy-duty spherical bearings with integral self-aligning ball bearing

  • Outer ring: 100Cr6 ball bearing steel, hardened, runway superfinished
  • Inner ring: 100Cr6 ball bearing steel, hardened, superfinished
  • Rolling element: 100Cr6 ball bearing steel, hardened, superfinished
  • Maintenance: low maintenance, aluminium-complex-soap-grease, approval according to USDA H1, further information on type of grease, see on this page
  • Tolerances: see on this page
  • Installation Instructions: see on this page
  • Highlights: see on this page
  • Temperature range: -45° C to +120° C

Special characteristics:

  • For high speeds, wide swivelling angles or rotating movements,
  • Low bearing friction,
  • Low maintenance due to long-term lubrication with food-grade approval;
  • Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.

For shaft diameters from 6 mm to 40 mm.

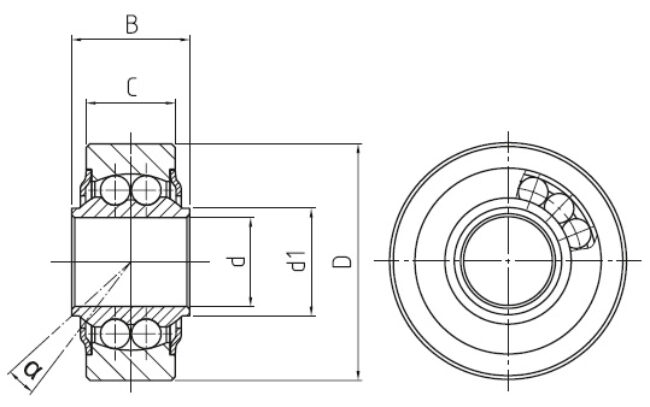

Type d (mm) D (mm) B (mm)
WLK 06 – 00 – 500 6 20 9
WLK 08 – 00 – 500 8 24 12
WLK 10 – 00 – 500 10 28 14
WLK 12 – 00 – 500 12 32 16
WLK 14 – 00 – 500 14 36 19
WLK 16 – 00 – 500 16 42 21
WLK 18 – 00 – 500 18 46 23
WLK 20 – 00 – 500 20 50 25
WLK 22 – 00 – 500 22 54 28
WLK 25 – 00 – 500 25 64 31
WLK 30 – 00 – 500 30 70 37
WLK 35 – 00 – 500 35 92 48
WLK 40 – 00 – 500 40 120 66
