Basic Line

DGEG ES-2RS

01
 - 02
DGEG ES 2RS

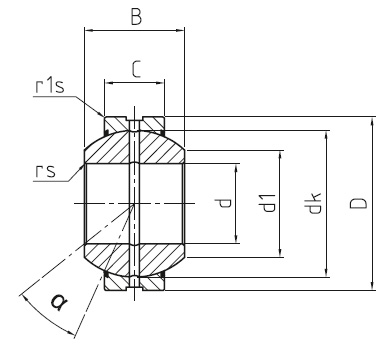

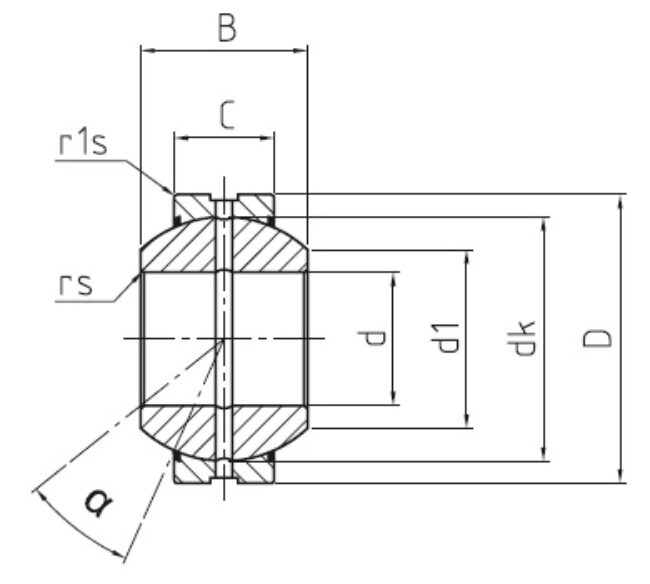

DGEG-E_2RS_drawing

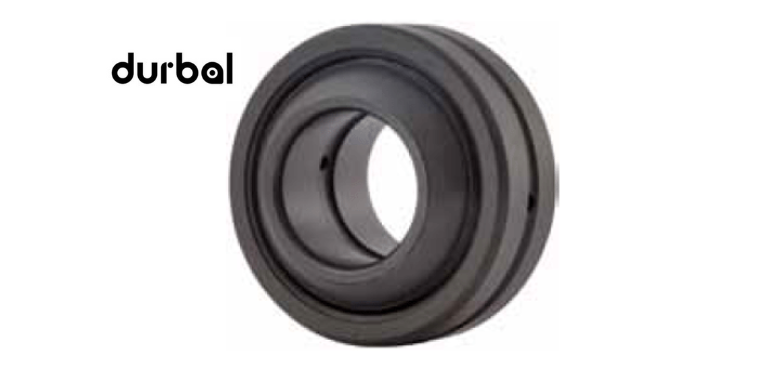

Spherical-plain bearing with steel/steel, with -2RS lip seals on both sides, series G, DIN ISO 12240-1, maintenance required
Available Sizes
15 → 280

The Essential

DURBAL spherical-plain bearing sliding combination steel / steel, with -2RS lip seals on both sides, series G, according to DIN ISO 12240-1

  • Outer ring: ball bearing steel, hardened, ground, phosphated, single split, with oil groove and drill holes, with -2RS lip seals on both sides
  • Joint ball: ball bearing steel, hardened, ground, phosphated
  • Maintenance: maintenance required, oiled on delivery, initial lubrication by the user
  • Tolerances: see on this page
  • Temperature range: -40° C to +120° C

Special characteristics:

  • For use with high and alternating loads and larger angles of tilt,
  • Wider joint ball and larger outside diameter compared to DGE_ES-2RS series, to enable higher load ratings and larger tilt angle;
  • -2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.

Available as a complete linkages (system) solution. For shaft diameters from 15 mm to 280 mm.

Type d (mm) D (mm) B (mm)
DGEG 15 ES-2RS 15 30 16
DGEG 17 ES-2RS 17 35 20
DGEG 20 ES-2RS 20 42 25
DGEG 25 ES-2RS 25 47 28
DGEG 30 ES-2RS 30 55 32
DGEG 35 ES-2RS 35 62 35
DGEG 40 ES-2RS 40 68 40
DGEG 45 ES-2RS 45 75 43
DGEG 50 ES-2RS 50 90 56
DGEG 60 ES-2RS 60 105 63
DGEG 70 ES-2RS 70 120 70
DGEG 80 ES-2RS 80 130 75
DGEG 90 ES-2RS 90 150 85
DGEG 100 ES-2RS 100 160 85
DGEG 110 ES-2RS 110 180 100
DGEG 120 ES-2RS 120 210 115
DGEG 140 ES-2RS 140 230 130
DGEG 160 ES-2RS 160 260 135
DGEG 180 ES-2RS 180 290 155
DGEG 200 ES-2RS 200 320 165
DGEG 220 ES-2RS 220 340 175
DGEG 240 ES-2RS 240 370 190
DGEG 260 ES-2RS 260 400 205
DGEG 280 ES-2RS 280 430 210
Type d (mm) D (mm) B (mm)
