DSB

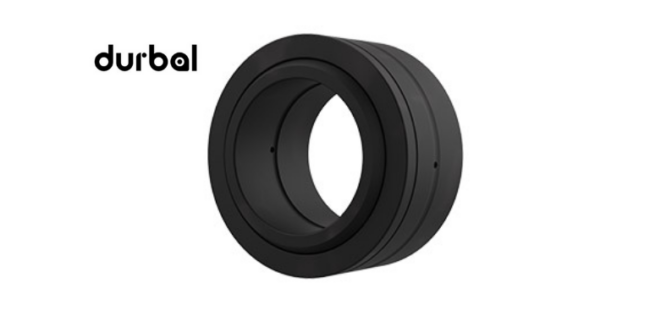

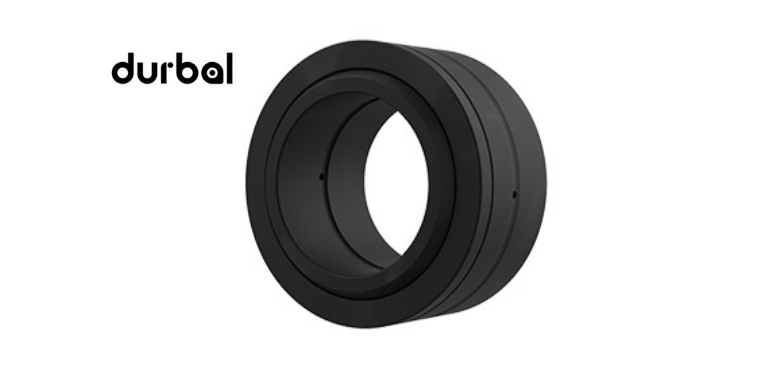

DURBAL spherical-plain bearing sliding combination steel / steel

• Outer ring: ball bearing steel, hardened, ground, phosphated, split at two points, with oil groove and drill holes,
• Joint ball: ball bearing steel, hardened, ground, phosphated
• Maintenance: maintenance required, oiled on delivery, initial lubrication by the user
• Temperature range: -40° C to +200° C

Special characteristics:

• For use with heavy shock loads, therefore is particularly suitable for the vibration range with slow, heavy movements.
• The spherical plain bearing has a large contact area in the joint ball area, which is why it is preferred for heavy loads.

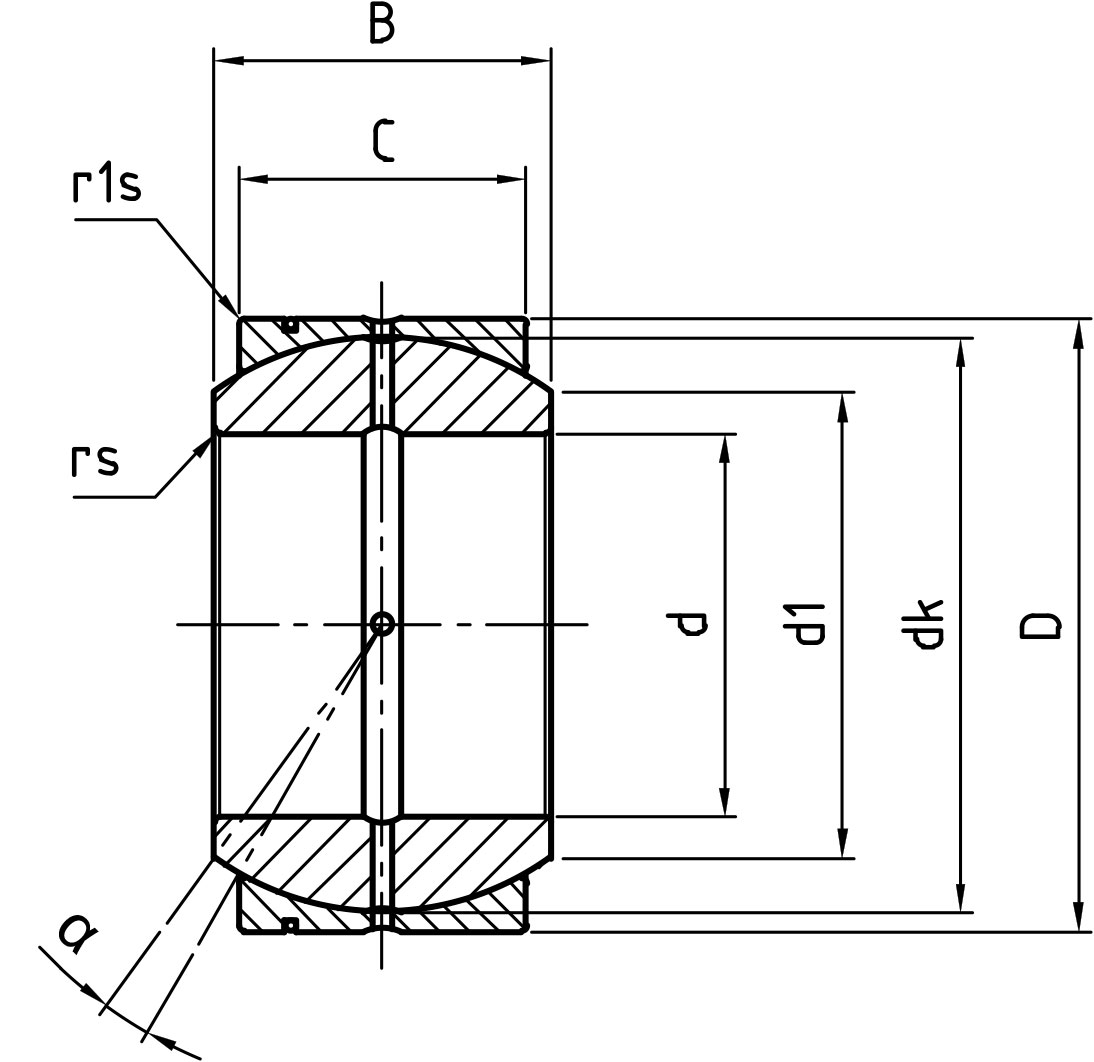

• The outer ring is split in two places to accommodate the joint ball. The splited outer ring and the joint ball are held together by a snap ring in the groove around the outer ring.

For shaft diameters from 70 mm to 150 mm.
